ELCA Vedo Radio Remote Control

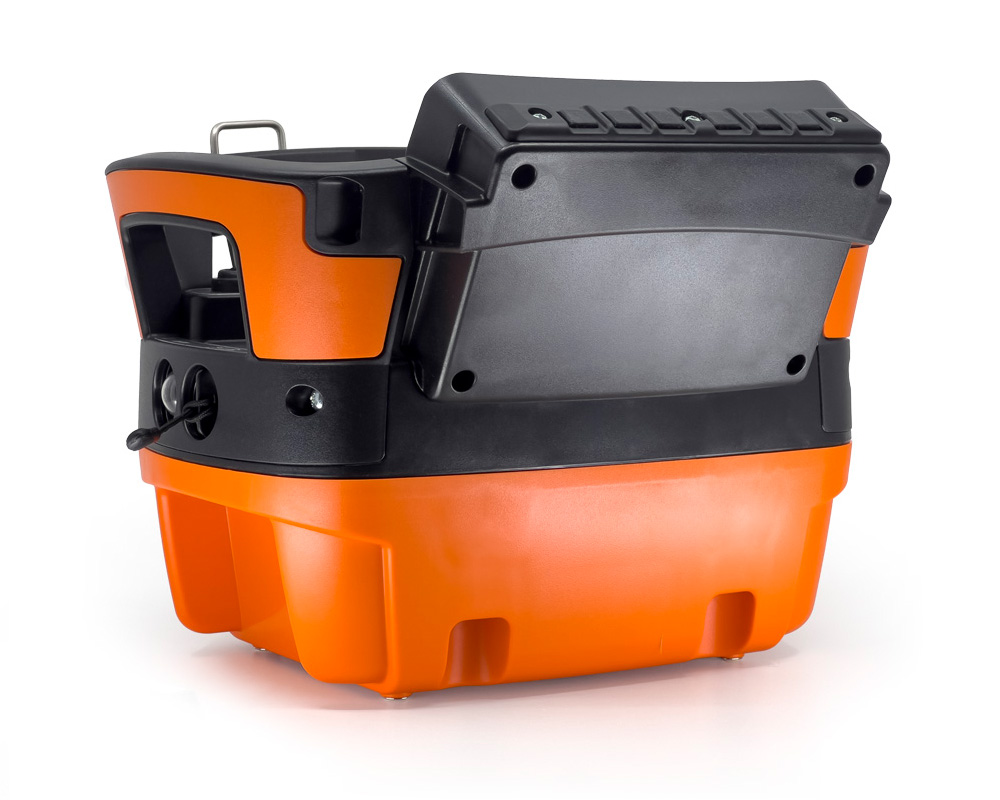

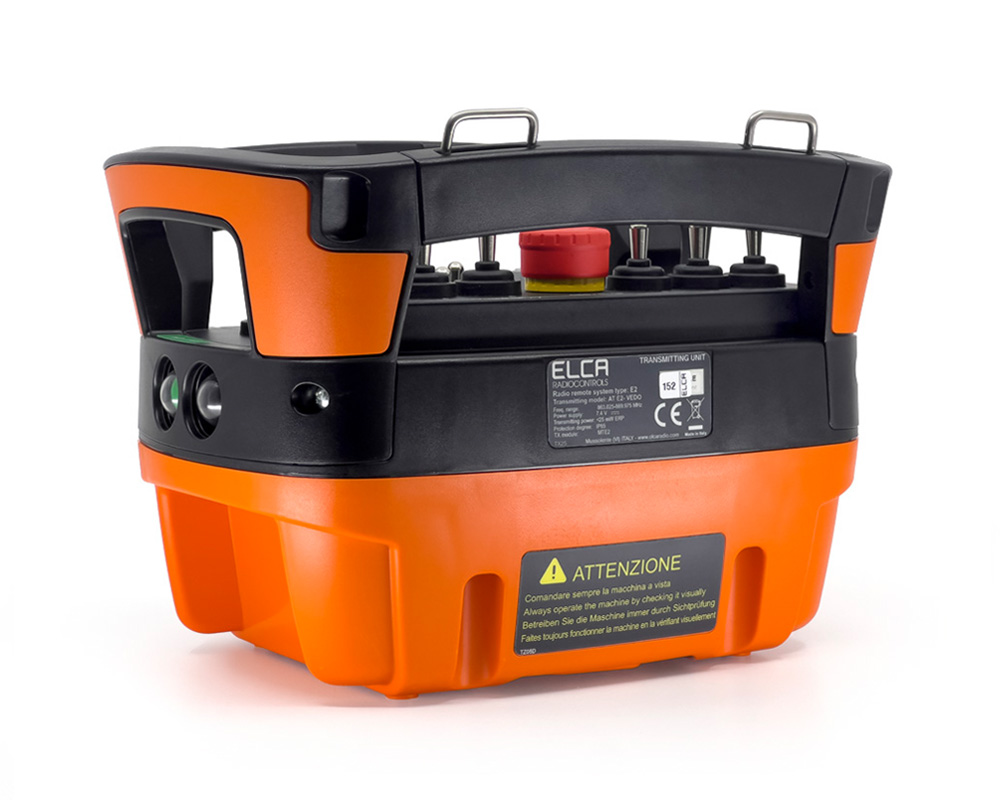

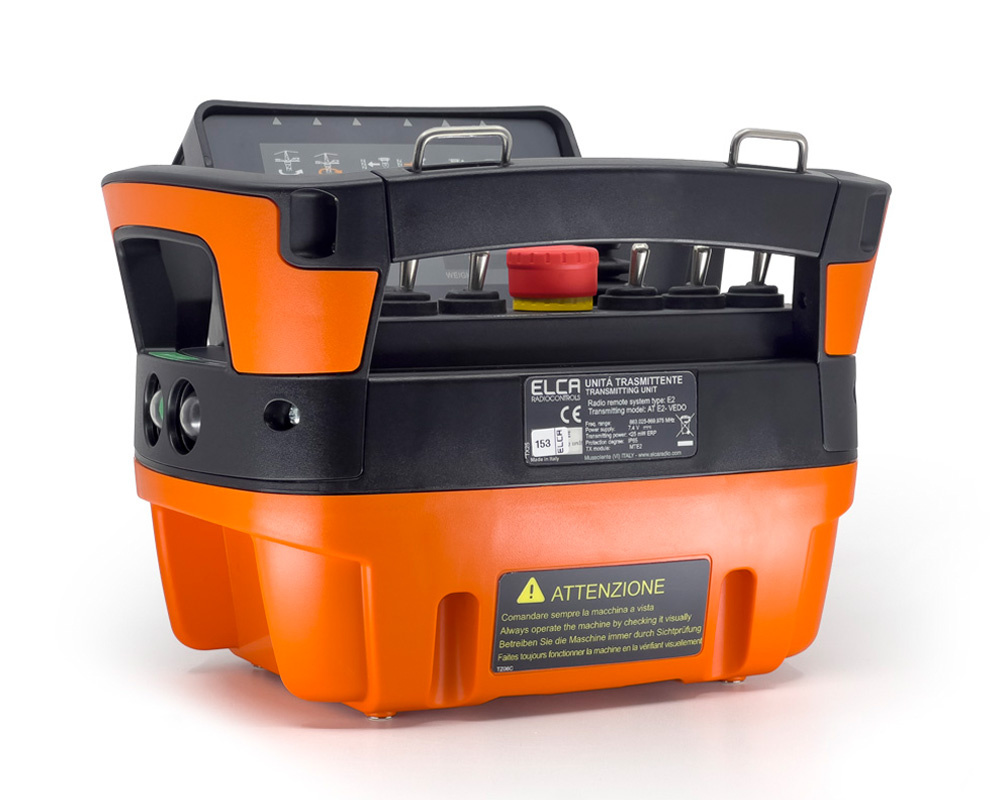

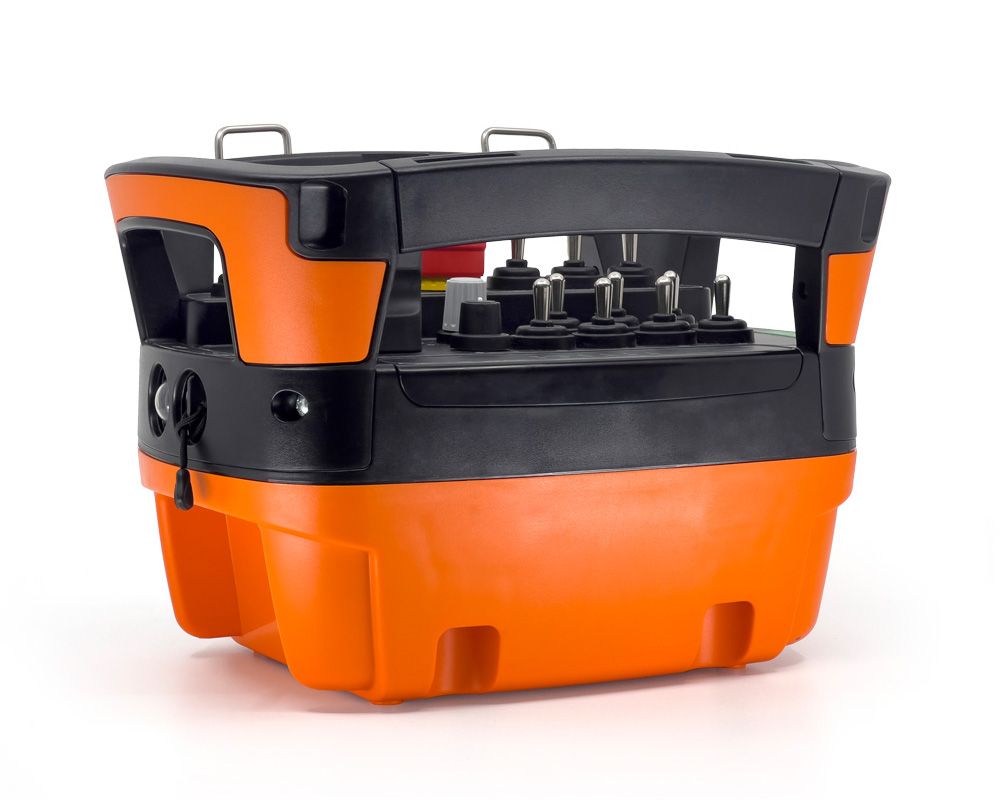

Designed for reliable wireless control, the Vedo is a waist-portable radio control system engineered for applications requiring advanced configurability and flexible control layouts. Its high configurability allows integration of multiple actuator types across three control positions: on-top, two-level, and side-mounted configurations. The system features a magnetic contactless hardware key with optional PIN identification and supports
Interested in this product?
Product Details
Designed for reliable wireless control, the Vedo is a waist-portable radio control system engineered for applications requiring advanced configurability and flexible control layouts.
Its high configurability allows integration of multiple actuator types across three control positions: on-top, two-level, and side-mounted configurations. The system features a magnetic contactless hardware key with optional PIN identification and supports programmable outputs via CANbus, PROFIBUS, PROFINET, and Ethernet interfaces.
For enhanced safety, the Vedo incorporates a General Safe Stop (GSS) meeting PL d Category 3 requirements in accordance with EN ISO 13849-1. The transmitter housing is manufactured from high-impact ABS and is powered by an interchangeable lithium battery located in the lower section of the control panel.

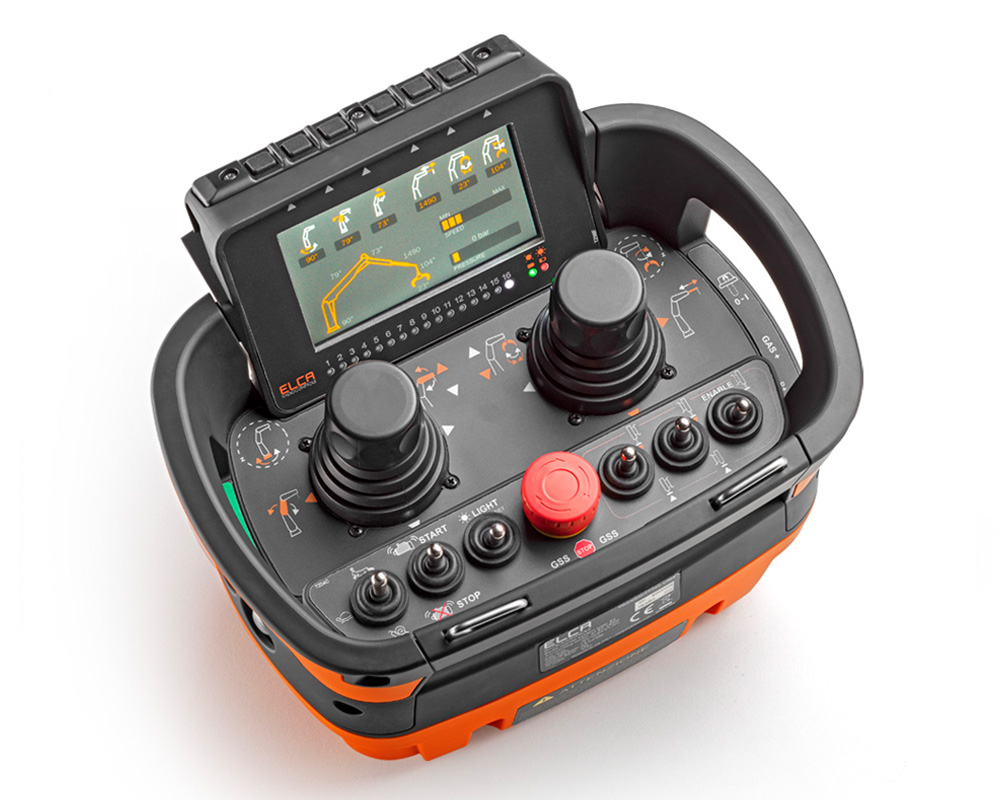

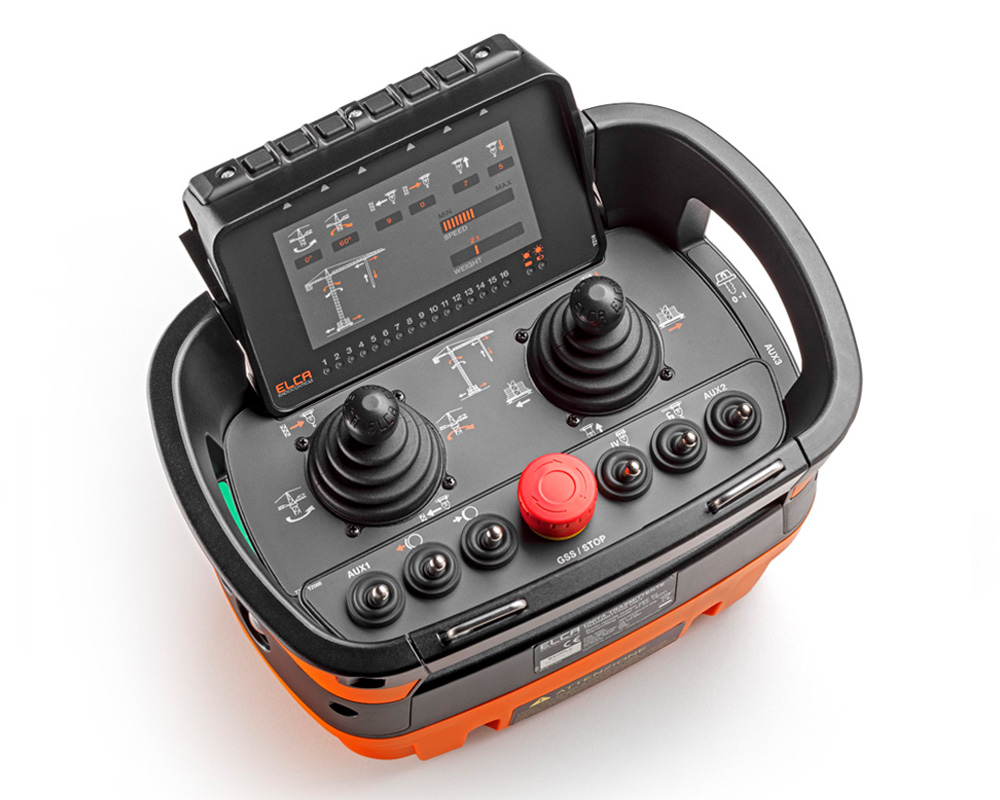

An optional graphical display with CODESYS (IEC 61131-3 compliant) is available, along with customisable colour graphics. The integrated quick-coupling belt system and perimeter protection ensure stable operation and help prevent unintended actuator activation.
The Vedo is suitable for lifting and material handling applications, including overhead cranes, lifting cranes, and general load-handling machinery.
Electronics: E, BRAVO
